How to Create a Gantt Chart in Excel

In companies and organizations all over the world, people use Excel in diverse ways – from repurposing it as a makeshift calculator to tracking massive projects. Given the software's omnipresence, it’s no wonder so many people try to use it for tasks that Excel was never meant to do.

For example, you can even use Excel to cobble together a Gantt chart, as detailed in this step-by-step tutorial. For comparison, we’ll also show you how a pre-built, online Gantt chart template in Smartsheet makes creating a Gantt chart far easier. Then we’ll describe the background on Gantt charts - how they originated, their benefits, and common challenges.



How would you like to create your Gantt chart?

- or -

Manually create a Gantt chart in Excel

Time to complete: 30 minutes

What Is a Gantt Chart?

The Gantt chart is one of the most popular scheduling tools in project management. It’s a horizontal bar chart that shows progress on a project schedule.

Tasks are arrayed on the vertical axis while the horizontal axis represents time. Tasks may be rolled up into summary elements, which constitutes a number of subtasks and represents a phase of project work.

Final Gantt in Excel

How to Create a Gantt Chart in Excel (30 minutes)

1. Create a Task Table

List each task in your project in start date order from beginning to end. Include the task name, start date, duration, and end date.
Task List

Make your list as complete as possible. Because of Excel's limitations, adding steps or extending out may force you to reformat your entire chart.


2. Build a Bar Chart

On the top menu, select Insert, and then click on the Bar chart icon. When the drop-down menu appears, choose the flat Stacked Bar Chart, highlighted in green below. This will insert a blank chart onto your spreadsheet.


Select Bar Chart

Add Start Date data.

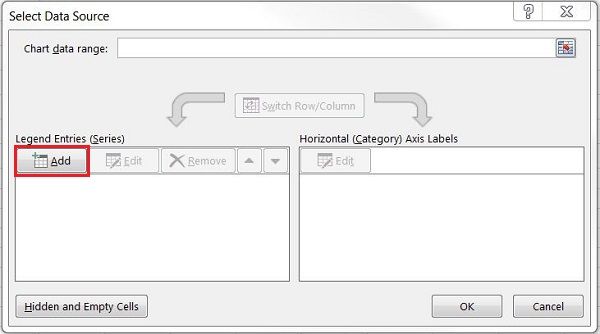

  1. Position your mouse over the empty Excel chart and right click. Then, left click on Select Data. The Select Data Source window will appear.
  2. Under Legend Entries (Series), click Add. This will take you to the Edit Series window.

Select Data Source

  1. Click in the empty Series name: form field first, then click on the table cell that reads Start Date.
  2. Click on the icon at the end of the Series values field. The icon is a small spreadsheet with a red arrow (the lower icon). This will open the Edit Series window.

Small Spreadsheet Icon

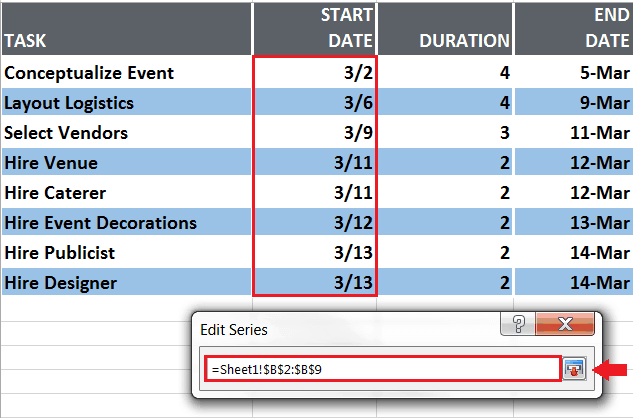

Click on the first Start Date, 3/2 in my example, and drag your mouse down to the last Start Date. After the right dates are highlighted, click on the icon at the end of the Edit Series form. The window will close and the previous window will reopen. Select OK. Your start dates are now in the Gantt chart.

Series Data Range


Next, add the Durations column using the same procedure you used to add the start dates.

  1. Under Legend Entries (Series), click on Add.
  2. Click in the empty Series name: form field first, then click on the table cell that reads Duration.
  3. Click on the icon at the end of the Series values field. The icon is a small spreadsheet with a red arrow (the lower icon). This will open the Edit Series window. Click on the first Duration, it is 5 in my example, and drag your mouse down to the last Duration. After the durations are highlighted, click on the icon at the end of the Edit Series form. The window will close and the previous window will reopen. Select OK. Your durations are now in your Gantt chart.

All data in bar chart

Change the dates on the left side of the chart into a list of tasks.

  1. Click on any bar in the chart, then right click, then open Select Data.

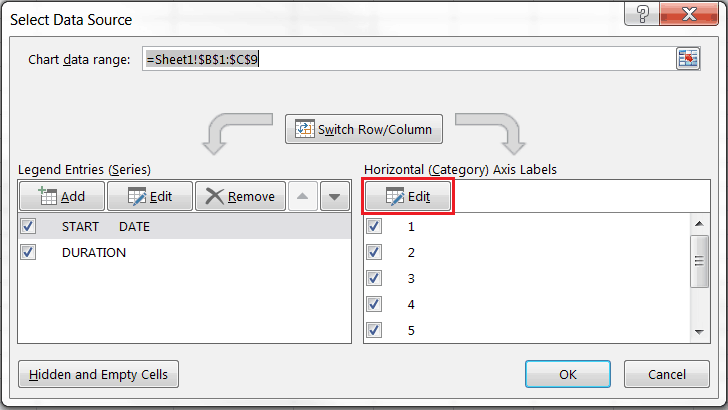

  2. Under Horizontal (Category) Axis Labels, click on edit

Horizontal Data Enter

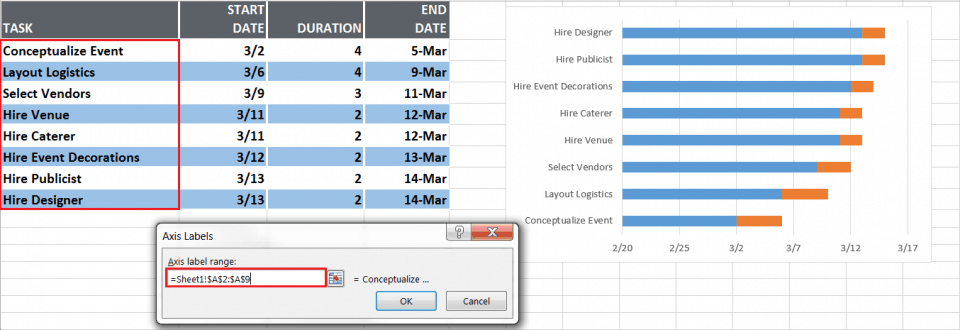

  1. Using your mouse, highlight the names of your tasks. Be careful not to include the name of the column itself, Task.

Task Labels
  1. Click on OK.
  2. Click OK again.

Your Gantt chart ought to look like this:

Prelim GAntt


3.     Format Your Gantt Chart

What you have is a stacked bar chart. The starting dates are blue and the durations are orange.

Notice your tasks are in reverse order. To fix this, click on the list of tasks to select them, then right click over the list and choose Format Axis. Select the checkbox Categories in reverse order and Close.


Reverse Categories

To give your Gantt chart more space delete the Start Date, Duration legend on the right. Select it with your mouse, then hit delete.

Hide the blue portions of each bar. Clicking on the blue part of any bar will select all of them. Then, right click and choose Format Data Series.

  1. Click on Fill then select No fill.
  2. Click on Border Color then select No line.

You're almost finished. You just need to remove the empty white space at the start of your Gantt chart:

  1. Click on the first Start Date in your data table. Right click over it, select Format Cells, then General. Write down the number you see. In my case it is 42064. Hit Cancel because you do not want to actually make any changes here.

Format Cells General Number

  1. In the Gantt chart, select the dates above the bars, right click and choose Format Axis.
  2. Change the Minimum bound to the number you recorded.
  3. Change the Major unit to 2, for every other day. You can play with this to see what works best for you.
  4. Select Close.

Format Axis Remove White Space

If you want to make your Gantt chart look a little nicer, remove most of the white space between the bars.

  1. Click on the top orange bar.
  2. Right click and select Format Data Series.
  3. Set Separated to 100% and Gap Width to 10%.

Format Axis Remove Gaps

You are finished. Your Gantt chart should look like this:

Final Gantt in Excel



Want an Easier Way to Create a Gantt Chart?

That is a lot to remember. While your Excel Gantt chart may look clean, it’s not exactly serviceable.

  • The chart does not resize when you add new tasks.
  • It’s hard to read. There is no grid or daily labeling.
  • The values don’t automatically adjust when changes are made.
  • Version control is an issue. It’s hard to know whether you’re working off the most up-to-date version.
  • Collaboration is difficult without real-time access for internal and external team members.

And although it’s possible to create a more detailed Gantt chart in Excel, they are more complicated to setup and maintain. The factors that make Gantt charts useful, shareable, and collaborative cannot be accomplished with Excel.

Create Your Real-Time Gantt Chart in Smartsheet (3 minutes)

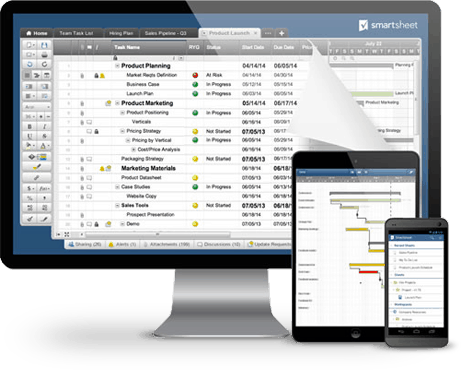

Smartsheet is an easy-to-use, real-time work management tool with a familiar spreadsheet-like interface. Using a pre-built Gantt chart template in Smartsheet, you can create real-time timelines, that automatically update as changes are made, with much less effort than Excel.

Create your Gantt chart in Smartsheet in a couple steps:

  1. Click the '+' tab, then click Create.
  2. Click the Project tile.

EN Gantt Chart Excel Create New Project Sheet


Smartsheet will prompt you to name your new sheet with pre-built Gantt chart functionality. From there, you're good to go. You can start entering your task list.

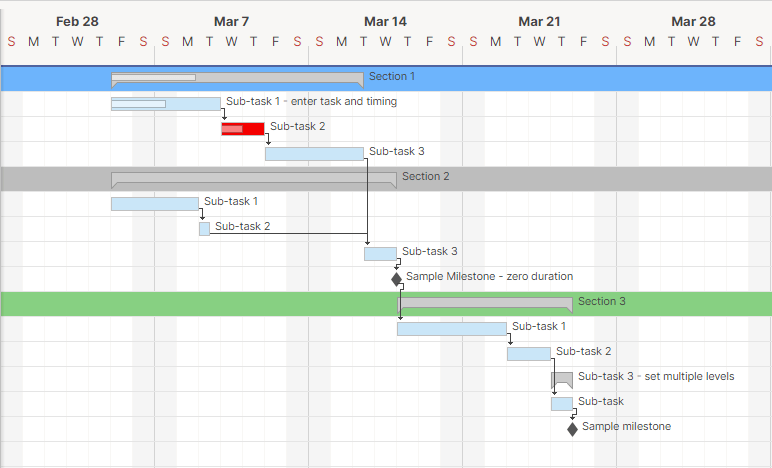

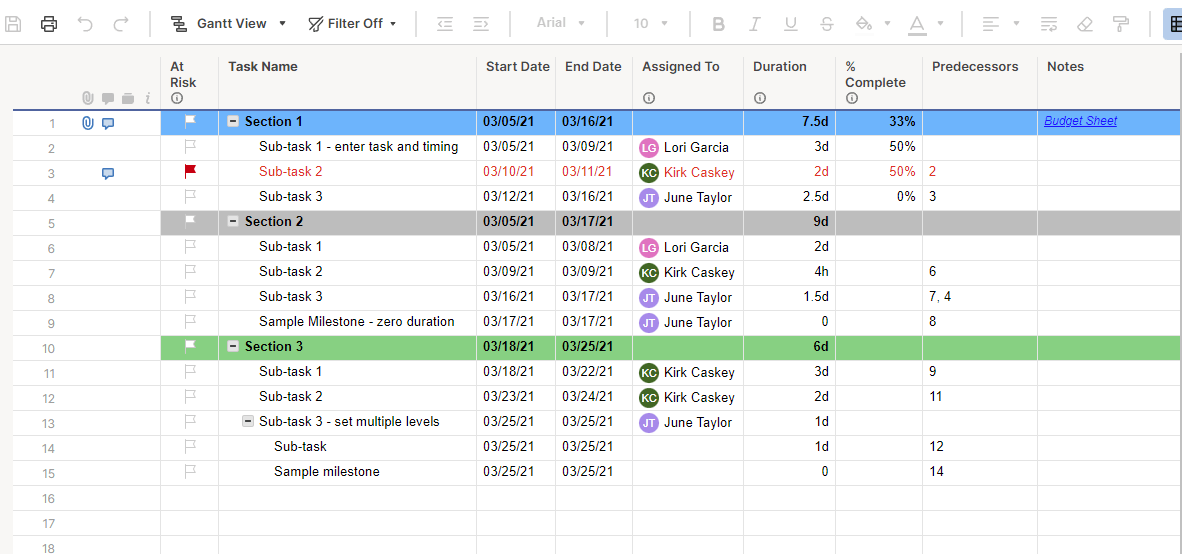

EN Gantt Chart Grid

Add task names for each task and two of either the start date, duration, or end date. When you enter two of these, the third will automatically populate. Going forward, when you change any of the three variables, the other two will automatically update.

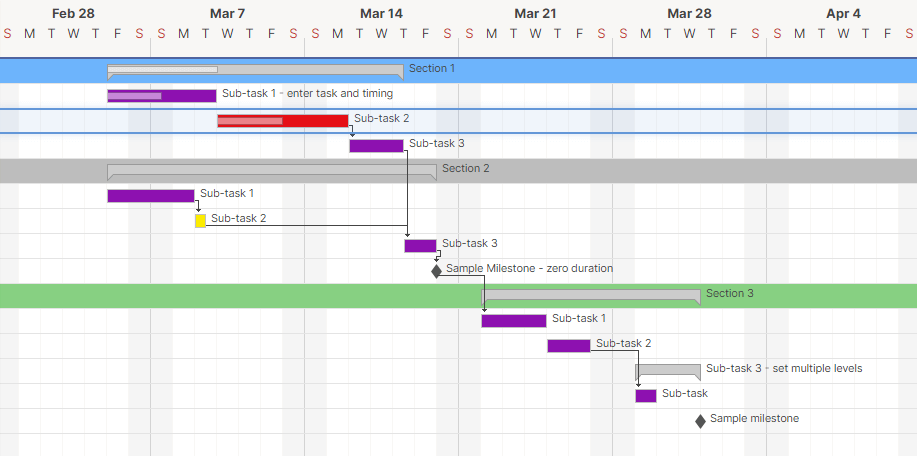

As you add tasks, Smartsheet creates your horizontal Gantt bars. Unlike in Excel, there is no need to format anything — Smartsheet does it for you.



Additionally, when you use your mouse to click and drag either end of any Gantt bar, the corresponding dates and durations in the task table will update. From here you can add additional Gantt data such as predecessors and task groups.

You can even switch between Gantt, Grid, Calendar, and Card views, or manage your Gantt chart on your mobile device. Already your simple Smartsheet Gantt chart is far more functional and responsive than one in Excel, and you're just getting started.

Feature Overview Smarts Projects


A Powerful Platform for the Way You Work Today

In addition to it’s simple, easy-to-use Gantt chart functionality, Smartsheet enables enterprises and teams to make better decisions and get more done. Over 74,000 brands rely on Smartsheet to help align the right people, resources, and schedules to deliver projects on time and on budget.

Use Smartsheet to create consistent project elements, increase speed, and improve collaboration with scalable options that fit individual work preferences. Hold yourself and your team accountable, improve visibility into team priorities, and ensure nothing slips through the cracks.

Learn how Smartsheet can help you and your organization move from idea to impact — fast.


Don’t take our word for it — see for yourself. Get a free 30 day trial with nothing to install.
